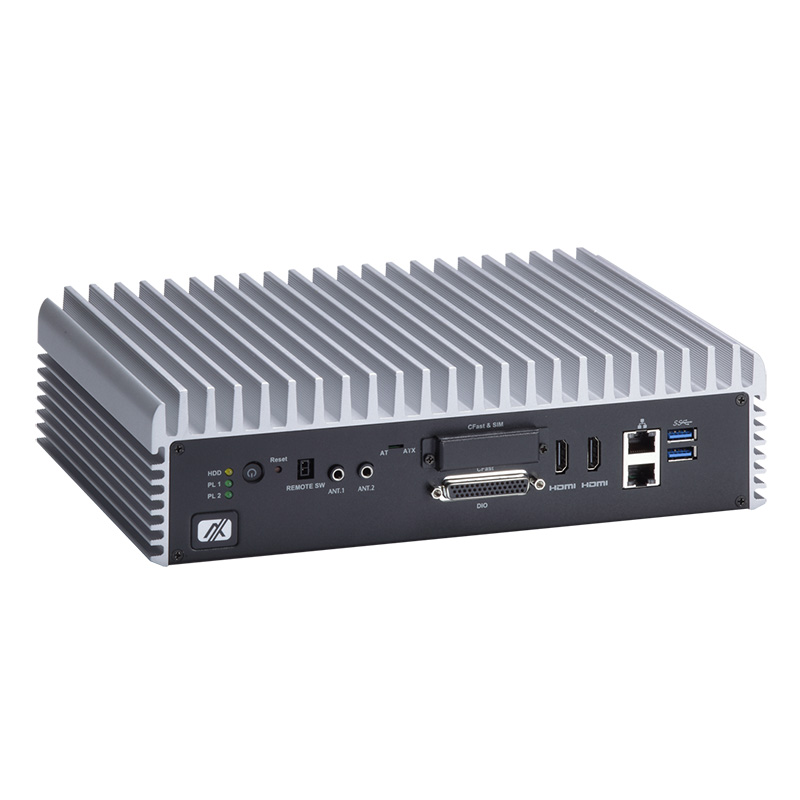

Máy tính nhúng: eBOX670-883-FL
Mã sản phẩmEBOX670-883-FL

LGA1150 socket for 4th generation Intel® Core™ i7/i5/i3 and Celeron® processors (Haswell) with Intel® Q87 chipset
Fanless operation design with full feature I/O
204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB
Two 2.5 SATA drive bay, 1 CFast™ slot and mSATA
2 internal PCI Express Mini Card slots, 1 SIM slot
Supports 2 HDMI, VGA and DisplayPort for triple independent display
Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
Supports wide range 9-36VDC



> Lượt xem18327
    Giá: Liên hệ

> Tình trạngCòn hàng
> Hãng sản xuấtaxiomtek
> Bảo hành 12 Tháng
Tp. Hà Nội
024. 7300 6077 - ext: 201
096 222 7777
sales@ato.vn
Tp. Hồ Chí Minh
028. 7300 6077 - ext: 802
096 222 7777
sales@ato.vn
    Bookmark and Share
Tính năng SD Đặc tính kỹ thuật Bảo hành Mô hình ứng dụng Phụ kiện / tùy chọn Tài liệu Driver Video Nhận xét
CPU
  • LGA1150 socket for Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 45W)
Chipset
  • Intel® Q87
System Memory
  • 2 x 204-pin SO-DIMM DDR3-1333/1600 up to 16 GB
BIOS
  • AMI
COM
  • 6 x RS-232/422/485
USB
  • 6 x USB 3.0
Ethernet
  • 4 x 10/100/1000Mbps (Intel® i210-IT, I217LM)
Display
  • 2 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Digital I/O
  • 32 channel programmable DI/DO
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5” SATA HDD with RAID 0 & 1
  • 1 x CFast™
  • 1 x mSATA
Expansion
  • 2 x Full-size PCI Express Mini Card
  • 1 x SIM slot
Others
  • 2 x SMA type connector opening for antenna
  • 1 x VDC 9~36V power input connector
  • 1 x ATX power switch with status indicator
Power Supply
  • DC input 9~36V
Watchdog Timer
  • 255 levels, 1~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +55°C (-40°F~131°F) (with W.T. SSD, CPU TDP 35W)
  • -40°C ~ +50°C (-40°F~122°F) (with W.T. SSD, CPU TDP 45W)
Relative Humidity
  • 10% ~ 90% , non-condensing
Vibration
  • 3 Grms w/ CFast™ (5 - 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 280 x 190 x 70 mm (11.02" x 7.48" x 2.75")
Weight (net/gross)
  • 3.8 kg (8.37 lb)/4.6 kg (10.14 lb)
Certification
  • CE, EN60950 Compliance
EOS Support
  • WES8, WES7, Linux
Mounting
  • Wall mount
